JUKI RF-ATG Electric Tape Feeder Calibration Jig

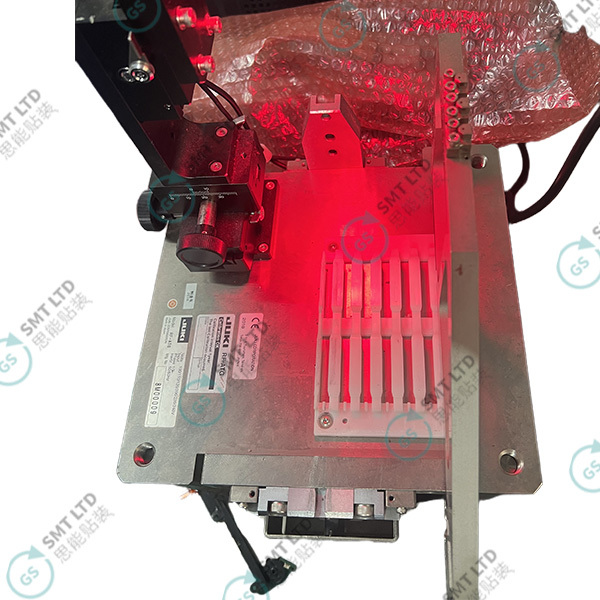

JUKI Electric Tape Feeder Calibration Jig RF-ATG Product Picture:

JUKI spare parts:

400-00410     COVER STUD ASSY
400-01510     COVER STUD RL
400-01512 COVER STUD YF
400-01515 COVER STUD YS
400-01516 COVER STUD YR
400-74098 Y-AXIS SENSOR BR(1070C) ASSY
400-00411 Y AXIS SENSOR BR ASSY
400-00509     SENSOR BRACKET L
SM-3040652-TN SCREW M4 L=6
400-00510  SENSOR BRACKET R
SM-3040652-TN SCREW M4 L=6
PS-0500202-KP SPRING PIN 5X20
400-00413  FEEDER FLOAT SENS ASSY
400-74099  FEEDER FLOAT_SENS(1070C) ASSY
400-01575      FD FLOAT FL ASSY
SL-4031481-SC SCREW M3 X 14
EA-9500B01-00 CABLE BAND
400-02130  FD-FLOAT(FF)SENS ASM
400-02133  FD-FLOAT(FR)RECEIVE SENS ASM
400-01651      FSD BRACKET
E2157-729-000 FSD SPACER
400-01576      FD FLOAT FR ASSY
SL-4031481-SC SCREW M3 X 14
EA-9500B01-00 CABLE BAND
400-01651  FSD BRACKET
E2157-729-000 FSD SPACER
400-02131      FD-FLOAT(FF)RECEIVE SENS ASM
400-02132      FD-FLOAT(FR)SENS ASM
400-01577      FD FLOAT RL ASSY
SL-4031481-SC SCREW M3 X 14
EA-9500B01-00 CABLE BAND
400-01651      FSD BRACKET
E2157-729-000 FSD SPACER
400-02134      FD-FLOAT(RF)SENS ASM
400-02137      FD-FLOAT(RR)RECEIVE SENS ASM
400-01578  FD FLOAT RR ASSY
SL-4031481-SC SCREW M3 X 14
400-01651  FSD BRACKET
E2157-729-000 FSD SPACER
400-02135      FD-FLOAT(RF)RECEIVE SENS ASM

JUKI RF-ATG tape feeder jig

electric feeder calibration tool

tape feeder calibration jig with warranty

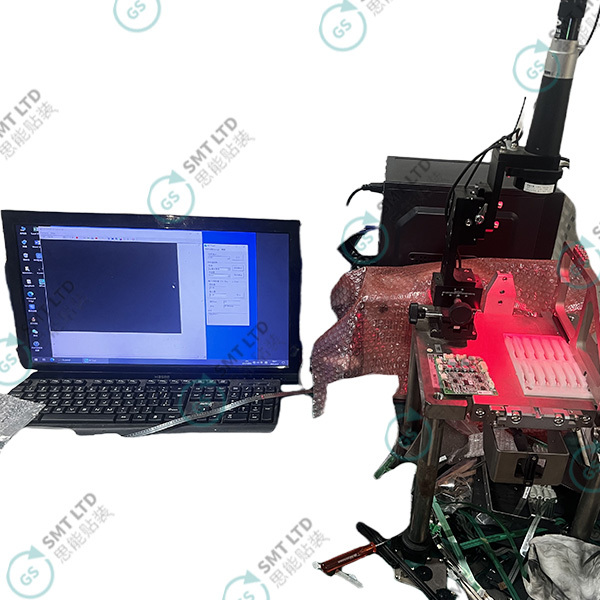

JUKI RF-ATG Electric Tape Feeder Calibration Jig Images
